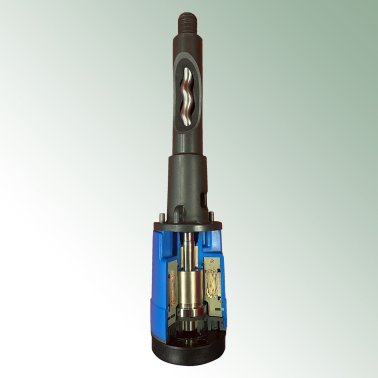

Solar pump LORENTZ HR-14-2 incl. controller S1-200

Innovative, compact, powerful solar submersible pump with brushless direct current motor. The pumps can be used to pump water from wells or other bodies of water into a tank or small irrigation system – ideal for gardens, livestock or an autonomous water supply. An optional liquid level switch can be used to automatically switch off the pump when the tank is full. An free app (iOS and Android) can be used to easily monitor all relevant data in real time via Bluetooth^®: flow rate (m³/h, PV performance (W), pump rpm and an overview of data for the last week. The following controller functions are available:

• Restriction of the maximum rpm speed
• Starting/ stopping times and intervals using a timer
• Restriction of the day flow rate (in combination with optional water meter)

The available models corresponding solutions for a variety of flow rates and pressure ranges.
The kit comprises a pump incl. a 15 m cable, a controller and a handbook.
Pump data:

• Diameter: 96 mm (HR Series), 99 mm VDC (CST Series)
• Minimum well diameter: 100 mm
• Max. immersion depth: 50 m
• Power input 0.25 kW (HR Series), 0.70 kW (CST Series)
• Maximum input voltage: 55 V DC (HR Series), 220 V DC (CST Series)
• Connection: 1" hose connector (HR Series), 1 1/4" female thread (CST-2-10), 1 1/2" female thread (CST-4-6)
